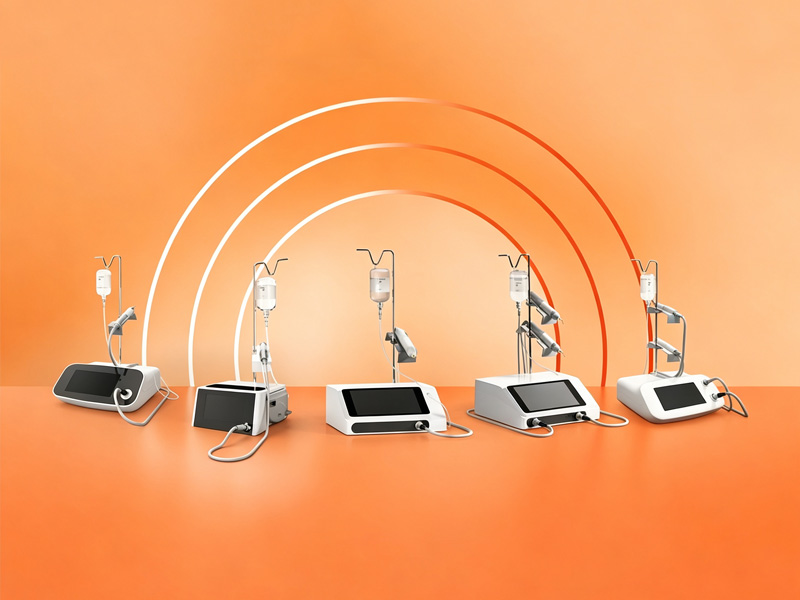

Piezoelectric surgery systems combine a control console, dedicated handpiece, irrigation system, foot control and compatible tips. Dedicated units and multifunction platforms are available in the range. Confirm operating modes, compatible accessories and intended procedures for the selected model.
The Piezo1+ combines ultrasonic bone surgery and implant motor functions in one integrated platform. A visual touch interface, precise torque control and adjustable irrigation support both implant procedures and a wide range of bone surgery applications.
Key Features
• 2-in-1 Platform: Integrates Piezo Surgery and Implant functions in one system for flexible clinical use.
• Visual Touch Interface: Real-time adjustment of power and water flow provides clear and intuitive control during procedures.
• Five Piezo Working Modes: Bone / Endo / Perio / Custom / Clean.
• Precise Torque Control: Real-time torque feedback supports controlled implant insertion and helps maintain primary stability.
• LED Brushless Motor: Provides stable operation across a broad motor-speed range.
• External Peristaltic Pump: Independent pump design supports stable irrigation and simplifies maintenance of the fluid path.
• Flexible Foot Control: Supports wired and Bluetooth connection for convenient hands-free operation.
Key Specifications
• Rated Voltage: 100–240 V, 50/60 Hz
• Motor Speed Range: 100–40,000 rpm
• Implant Mode Speed Range: 5–2,000 rpm
• Torque Range: 5–70 N·cm
• Piezo Working Frequency: 24–36 kHz
• Water Flow: 60–100 ml/min
• 20:1 Implant Contra-Angle: Speed range 5–2,000 rpm, maximum torque 70 N·cm
• Contra-Angle Illumination: >1,500 lux
Standard Configuration Highlights
• Control terminal
• Multifunction foot pedal
• Implant motor with cable
• Piezo handpiece with cable
• 20:1 implant contra-angle
• Working tips
• Irrigation accessories
• Water-bottle bracket
• Torque wrench
• Sterilization box
The AI Surgery Pro is an upgraded third-generation piezo surgery system designed for precise bone cutting across a broad range of surgical applications. Its large touch interface, adjustable power and irrigation, and dedicated operating modes provide efficient control for bone, endodontic and periodontal procedures, with an additional rhinoplasty mode highlighted in the product range.
Key Features
• Third-Generation Piezo Surgery Platform: Designed for high-precision ultrasonic bone surgery with controlled cutting performance.
• Five Working Modes: Bone / Endo / Perio / Custom / Clean.
• Rhinoplasty Mode: The upgraded system adds a dedicated mode for rhinoplasty applications.
• Large Color Touchscreen: Provides a clear, intuitive interface for rapid parameter adjustment and operation.
• Real-Time Power & Water Adjustment: Operating parameters can be changed during treatment according to procedural requirements.
• External Peristaltic Pump: Delivers stable irrigation with an independent tubing system for easier maintenance.
• Low Handpiece Temperature: The brochure specifies a maximum handpiece temperature of approximately 33°C after 10 minutes of full-power operation.
• Multifunction Foot Control: Supports operating control and water-flow adjustment, with wired and Bluetooth connectivity.
Key Specifications
• Rated Voltage: 100–240 V, 50/60 Hz
• Maximum Power Consumption: 340 VA
• Working Frequency: 24–36 kHz
• Water Flow: 60–100 ml/min
• Foot Switch Waterproof Rating: IPX1
• Electric Shock Protection Class: Class I
• Main Unit Dimensions: 280 × 300 × 128 mm
Standard Configuration Highlights
• Control terminal
• Multifunction foot pedal
• Piezo handpiece with cable
• Working tips
• External peristaltic pump
• Irrigation accessories
• Water-bottle bracket
• Torque wrench
• Sterilization box
Contact Sales with the destination market, intended application and estimated quantity.
