Implant Systems

Motor-driven equipment and supporting components for dental implant procedures

Contact Sales
PRODUCT OVERVIEW

Implant Systems

Dental implant motor systems support motor-driven steps in implant procedures. Components may include a control unit, motor, surgical handpiece or contra-angle, and irrigation accessories. Confirm compatible handpieces, control functions and included components for the selected model.

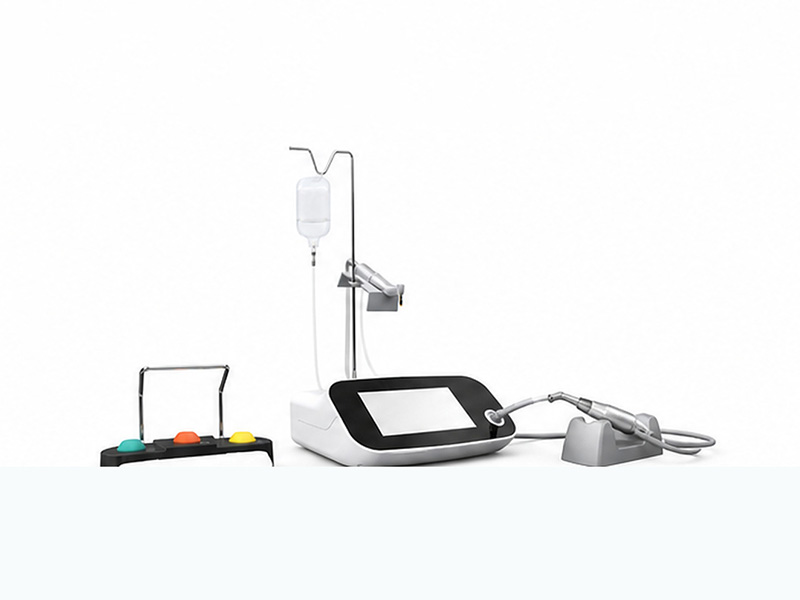

D9 — Advanced Implant & Surgical System

The D9 is designed for precise implant placement and a wide range of oral surgical procedures. Its visualized control interface, real-time feedback system and high-torque LED brushless motor provide stable and controllable performance throughout treatment.

Key Features

• Dual Operating Modes: Dedicated Implant Mode and Surgical Mode support both implant procedures and a variety of oral surgical applications.
• Preset Clinical Programs: 12 preset programs are available in Implant Mode, while Surgical Mode provides 8 preset programs for different clinical scenarios.
• Real-Time Feedback: The system provides continuous operating feedback to help clinicians monitor drilling and implant placement more precisely.
• LED Brushless Motor: Delivers stable operation across a wide speed range with torque output up to 70 N·cm.
• Intelligent Implant Control: Implant Mode dynamically coordinates speed and torque to support controlled insertion and improve primary stability.
• Visualized Interface: Clearly displays treatment parameters and operating status for convenient chairside control.

Key Specifications

• Motor Speed Range: 100–40,000 rpm
• Implant Mode Speed Range: 5–2,000 rpm
• Torque Range: 5–70 N·cm
• Water Flow Rate: 0–100 ml/min
• Maximum Power Consumption: 340 VA
• Rated Voltage: 100–240 V, 50/60 Hz

Standard Configuration Highlights

• Main control unit
• Multifunction foot pedal
• LED implant motor with cable
• 20:1 fiber-optic implant contra-angle
• Additional fiber-optic contra-angle handpieces
• Irrigation tubing and water-bottle accessories
• Motor holder and related connection accessories


D8 — Visualized Dental Implant System

The D8 provides a streamlined implant solution with a clear visualized operating interface and real-time data feedback. Implant and surgical operating interfaces are integrated into one system, allowing key treatment parameters to remain visible and easily adjustable throughout the procedure.

Key Features

• Visualized Operating Interface: An intuitive graphical interface presents operating parameters and real-time feedback in a clear format.
• Implant & Surgical Modes: Separate interfaces support both routine implant placement and surgical procedures.
• LED Implant Motor: Provides stable motor performance with a working speed range of up to 40,000 rpm.
• High Torque Output: Torque can be adjusted up to 70 N·cm for controlled implant procedures.
• Adjustable Irrigation: Water flow can be regulated according to procedural requirements.
• Integrated Workflow: Motor control, irrigation and operating parameters are managed through one compact system for convenient chairside use.

Key Specifications

• Motor Speed Range: 100–40,000 rpm
• Implant Mode Speed Range: 5–2,000 rpm
• Torque Range: 5–70 N·cm
• Water Flow Rate: 0–100 ml/min
• Maximum Power Consumption: 340 VA
• Rated Voltage: 100–240 V, 50/60 Hz

Standard Configuration Highlights

• Main control unit
• Foot pedal switch
• LED implant motor with cable
• 20:1 fiber-optic implant contra-angle
• Motor bracket
• Water-bottle bracket
• Disposable irrigation tubing
• Power and foot-pedal connection cables

APPLICATIONS

Common Areas of Use

•Dental implant procedures
•Implant-site drilling
•Oral surgery
•Specialist clinics
•Dental groups
•Equipment distributors

Need the Available Range or a Product Quotation?

Contact Sales with the destination market, intended application and estimated quantity.

Contact Sales
