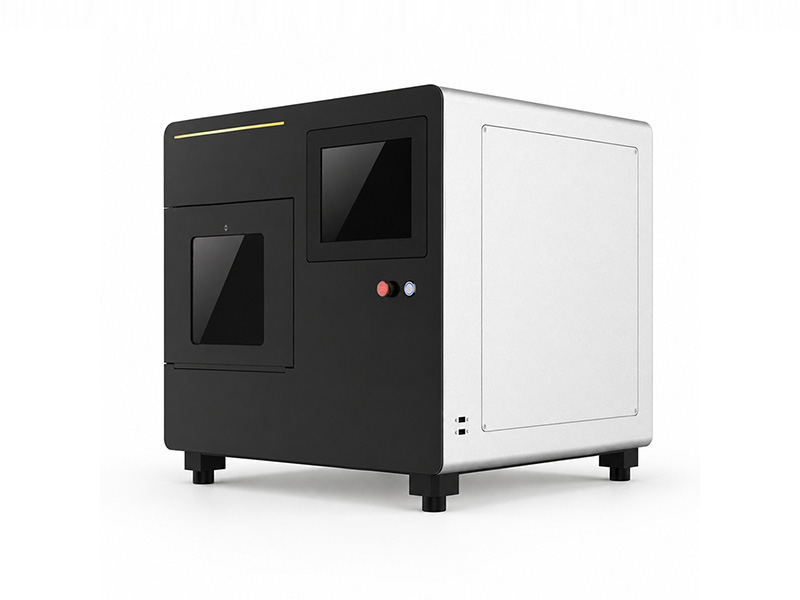

Dental Milling Machines

Milling equipment for digital dental restoration and laboratory production workflows

Contact Sales
PRODUCT OVERVIEW

Dental Milling Machines

Dental milling machines produce restorations and laboratory components through automated machining. The category includes compact and production-oriented equipment for different material and workflow requirements. Dry, wet or combined processing, tool management and automation features depend on the selected system, allowing laboratories and digital dental centers to organize production around their restoration range and expected workload.


500 Plus — 5-Axis Dental Milling Machine

The 500 Plus is a high-precision 5-axis dry milling machine designed for efficient dental laboratory production. Its enclosed processing chamber, intelligent monitoring functions and versatile material compatibility support reliable milling across a wide range of restorative workflows.

Key Features

• High-Precision Milling: A highly sealed processing chamber provides effective dust protection and machining accuracy of up to 3 μm.
• 5-Axis Processing: Provides flexible multi-angle milling with A-axis movement of ±30° and continuous B-axis rotation.
• Smart Monitoring: Displays operating status and provides malfunction warnings for improved process control.
• Remote Operation: Supports remote monitoring and machine control for more convenient laboratory management.
• Safety Functions: Automatic door-linked start/stop and auto-restart functions improve operating safety and reliability.
• Wide Material Capability: Designed for efficient dry processing of common dental CAD/CAM materials and fast cutting of harder materials.
• Extended Material Thickness: Supports materials up to 40 mm thick.

Key Specifications

• Axis Quantity: 5 axes
• Spindle Power: 1.8 kW
• Maximum Spindle Speed: 60,000 rpm
• Milling Range: XYZ 110 × 160 × 80 mm; A ±30°; B 360°
• Milling Mode: Dry milling
• Maximum Feeding Speed: XYZ 6,000 mm/min
• Bur Capacity: 10
• Tool Changing: Automatic
• Spindle Cooling: Water cooling
• Materials: Zirconia, PMMA, wax and soft metal
• Dimensions: 730 × 630 × 700 mm
• Net Weight: 210 kg
• Input Voltage: AC 220 V

Typical Milling Times

• Zirconia crown: approximately 8 minutes
• Wax: approximately 3 minutes
• PMMA: approximately 10 minutes
• PEEK: approximately 10 minutes
• Soft metal: approximately 10 minutes


630D — High-Performance 5-Axis Dental Milling Machine

The 630D is a high-performance 5-axis milling platform designed for both wet and dry dental processing. A powerful industrial spindle, large milling chamber and broad material compatibility make it suitable for laboratories requiring flexible production of ceramic, zirconia and metal-based restorations.

Key Features

• Wet & Dry Milling: Supports both processing modes for greater flexibility across different dental materials.
• High-Power Industrial Spindle: Equipped with a 2.5 kW spindle for demanding milling applications.
• 5-Axis Machining: Provides A-axis 360° rotation and B-axis movement of ±30° for complex restoration geometries.
• Large Milling Chamber: Spacious internal working area simplifies material loading and restoration removal.
• Automatic Tool Changing: 20-bur capacity supports extended processing with reduced manual intervention.
• Broad Material Compatibility: Suitable for zirconia, PMMA, wax, glass ceramic, titanium and premill abutments.
• High-Speed Processing: Maximum spindle speed reaches 60,000 rpm with feed rates up to 6,000 mm/min.

Key Specifications

• Axis Quantity: 5 axes
• Spindle Power: 2.5 kW
• Maximum Spindle Speed: 60,000 rpm
• Milling Range: XYZ 260 × 110 × 105 mm; A 360°; B ±30°
• Milling Mode: Wet and dry milling
• Maximum Feeding Speed: XYZ 6,000 mm/min
• Bur Capacity: 20
• Tool Change Mode: Automatic
• Spindle Cooling: Water cooling
• Materials: Zirconia, PMMA, wax, glass ceramic, titanium and premill abutment
• Dimensions: 800 × 650 × 850 mm
• Net Weight: 380 kg
• Input Voltage: AC 220 V

Typical Milling Times

• Glass ceramic: approximately 17 minutes
• Wax: approximately 3 minutes
• Premill abutment: approximately 25 minutes


A52 — 5-Axis Dry Dental Milling Machine

The A52 is a 5-axis dry milling machine designed for zirconia, PMMA, wax and PEEK processing. Its large-angle rotary system, enclosed dust-control structure and automatic tool-changing configuration support efficient production across a wide range of dental laboratory workflows.

Key Features

• 5-Axis Large-Angle Milling: A-axis rotation of ±360° and B-axis movement from -35° to +95° support complex restoration geometries.

• Enclosed Dust-Proof System: The fully enclosed processing chamber helps control milling dust and maintain a cleaner working environment.

• Automatic Tool Changing: Available with 6- or 12-bur configurations for different production requirements.

• High-Precision Processing: The catalogue specifies machining accuracy of less than 0.01 mm.

• Stable Mechanical Structure: High-performance cast components and aviation aluminum-alloy parts support stable operation.

• Operating Protection: Integrated protection monitors power failure and low air pressure conditions.

• Continuous Production: Designed to support 24-hour continuous operation.

• Simple User Interface: A clear operating interface supports convenient daily use.

Key Specifications

• Axis Quantity: 5 axes

• Rated Power: 1.0 kW

• Maximum Spindle Speed: 60,000 rpm

• Rotary Range: A-axis ±360°; B-axis -35° to +95°

• Processing Accuracy: <0.01 mm

• Bur Capacity: 6 or 12 burs, depending on configuration

• Cooling Method: Air cooling

• Air Pressure: 0.5–0.8 MPa

• Materials: Zirconia, wax, PEEK and PMMA

• Disc Compatibility: Ø98.5 mm discs, 10–35 mm thickness

• Dimensions: 490 × 550 × 750 mm

• Net Weight: 110 kg

• Voltage: 220 V / 50 Hz or optional 110 V / 60 Hz

Typical Milling Times

• Zirconia: approximately 10 minutes per unit

• PEEK: approximately 10 minutes per unit

• PMMA: approximately 10 minutes per unit

• Wax: approximately 3 minutes per unit

• Framework: approximately 45 minutes per unit


B42 — 4-Axis Wet Dental Milling Machine

The B42 is a floor-standing 4-axis wet milling machine developed for premill abutments, glass ceramics, titanium discs and other dental CAD/CAM materials. Its water-cooled spindle, industrial cast-steel structure and multi-position material capacity support stable production of restorative and implant-related components.

Key Features

• 4-Axis Wet Milling: A-axis rotation of ±360° supports efficient processing of premill, ceramic and metal restorations.

• High-Capacity Tool System: A 15-bur capacity reduces the need for frequent manual tool replacement.

• Premill & Glass-Ceramic Fixtures: The system supports up to 8 premill units and 4 glass-ceramic blocks in the specified configuration.

• High-Precision Processing: The catalogue specifies machining accuracy of less than 0.01 mm.

• Industrial Cast-Steel Structure: Heavy-duty construction is designed to improve stability during continuous operation.

• Water-Cooled Processing: Water cooling supports the milling of glass ceramics, titanium and other heat-sensitive materials.

• Operating Protection: Protection functions monitor power failure and low air pressure conditions.

• Continuous Production: Designed to support 24-hour continuous operation.

Key Specifications

• Axis Quantity: 4 axes

• Rated Power: 4.0 kW

• Maximum Spindle Speed: 60,000 rpm

• Rotary Range: A-axis ±360°

• Processing Accuracy: <0.01 mm

• Bur Capacity: 15 burs

• Cooling Method: Water cooling

• Air Pressure: 0.5–0.8 MPa

• Materials: Premill abutments, glass ceramic, titanium discs and PMMA; PEEK is listed as optional

• Dimensions: 650 × 650 × 1,680 mm

• Net Weight: 380 kg

• Voltage: 220 V / 50 Hz or optional 110 V / 60 Hz

Typical Milling Times

• Premill abutment: approximately 15 minutes per unit

• Glass ceramic: approximately 10–30 minutes per unit

• Metal crown: approximately 25 minutes per unit

• Wax framework: approximately 45 minutes per unit

• PEEK framework: approximately 120 minutes per unit

• Titanium framework: approximately 180 minutes per unit


A52D — High-Speed 5-Axis Dry Dental Milling Machine

The A52D is a high-speed 5-axis dry milling machine equipped with an 80,000 rpm spindle and a 12-bur automatic tool changer. It is designed for efficient processing of zirconia, PMMA, wax and PEEK restorations, with large-angle milling and an enclosed dust-control system for continuous laboratory production.

Key Features

• High-Speed Spindle: Maximum spindle speed reaches 80,000 rpm for efficient dry milling.

• 5-Axis Large-Angle Milling: A-axis rotation of ±360° and B-axis movement from -35° to +95° support complex restoration geometries.

• 12-Bur Automatic Tool Changer: Expanded tool capacity supports longer workflows with less manual intervention.

• Fully Enclosed Dust-Proof System: Helps contain milling dust and supports a cleaner equipment environment.

• High-Precision Processing: The catalogue specifies machining accuracy of less than 0.01 mm.

• Stable Structural Design: High-performance castings and aviation aluminum-alloy components support reliable operation.

• Operating Protection: Integrated protection monitors power failure and low air pressure conditions.

• Continuous Production: Designed to support 24-hour continuous operation.

Key Specifications

• Axis Quantity: 5 axes

• Rated Power: 1.0 kW

• Maximum Spindle Speed: 80,000 rpm

• Rotary Range: A-axis ±360°; B-axis -35° to +95°

• Processing Accuracy: <0.01 mm

• Bur Capacity: 12 burs

• Cooling Method: Air cooling

• Air Pressure: 0.5–0.8 MPa

• Materials: Zirconia, wax, PEEK and PMMA

• Disc Compatibility: Ø98.5 mm discs, 10–35 mm thickness

• Dimensions: 490 × 550 × 750 mm

• Net Weight: 110 kg

• Voltage: 220 V / 50 Hz or optional 110 V / 60 Hz

Typical Milling Times

• Zirconia: approximately 10 minutes per unit

• PEEK: approximately 10 minutes per unit

• PMMA: approximately 10 minutes per unit

• Wax: approximately 3 minutes per unit

• Framework: approximately 45 minutes per unit


APPLICATIONS

Common Areas of Use

•Dental laboratories
•Digital dentistry centers
•Restoration production
•Clinic laboratories
•Milling centers
•Equipment distributors

Need the Available Range or a Product Quotation?

Contact Sales with the destination market, intended application and estimated quantity.
